Product Description

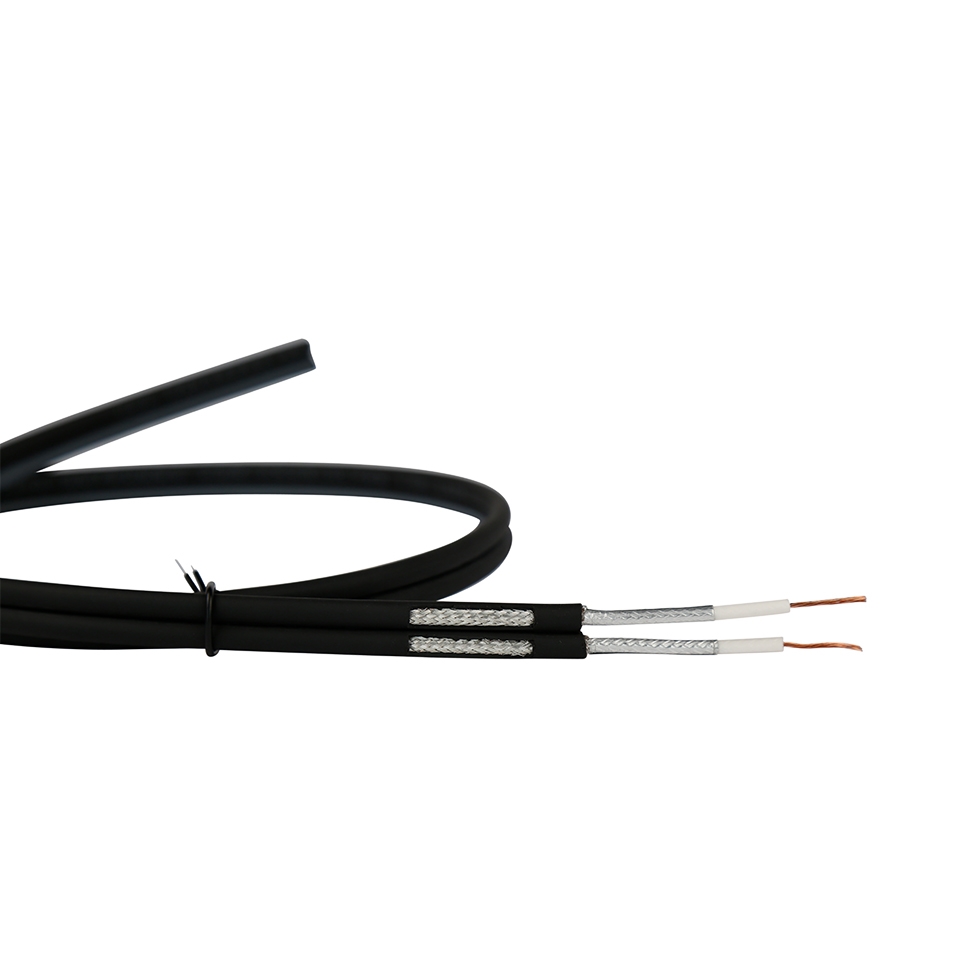

LSR240 Flexible low loss coaxial cable specifications

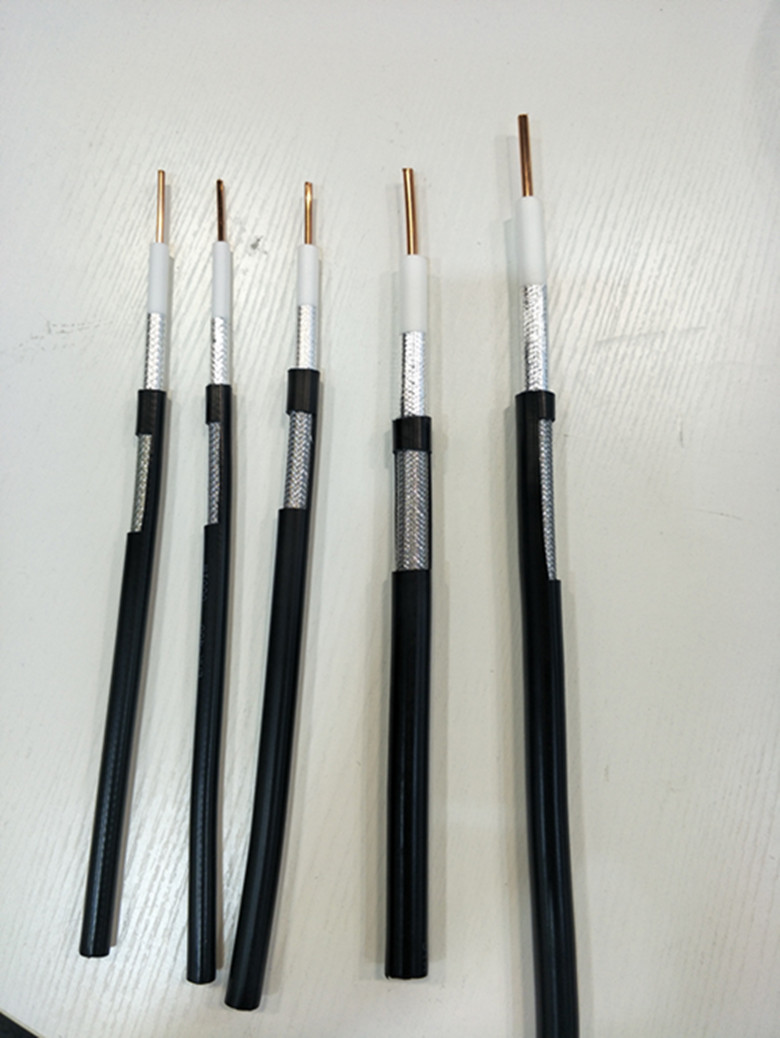

. Conductor:BC(Bare Copper)

. Insulation Material: Foam PE

.1st Shielding: Aluminum Tape

.2nd Shielding: Tinned Copper Braiding

. Impedance:50Ω±2

.Jacket: PE, PVC, LSZH

. Color: Black,White

 Typical Application:

1.LSR240 is designed according to LMR200 coax cable, is special for  short antenna feeder runs Mobile Antennas

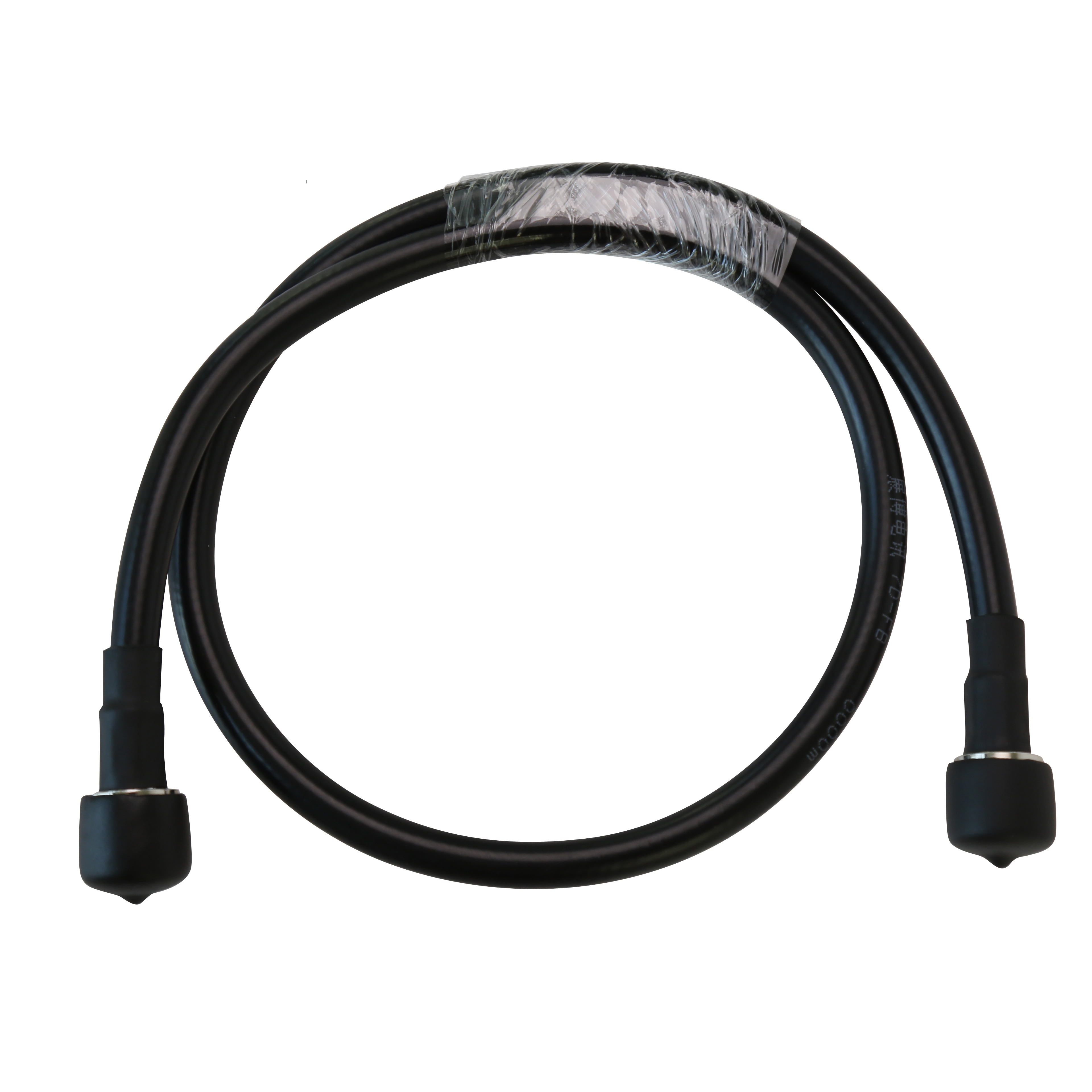

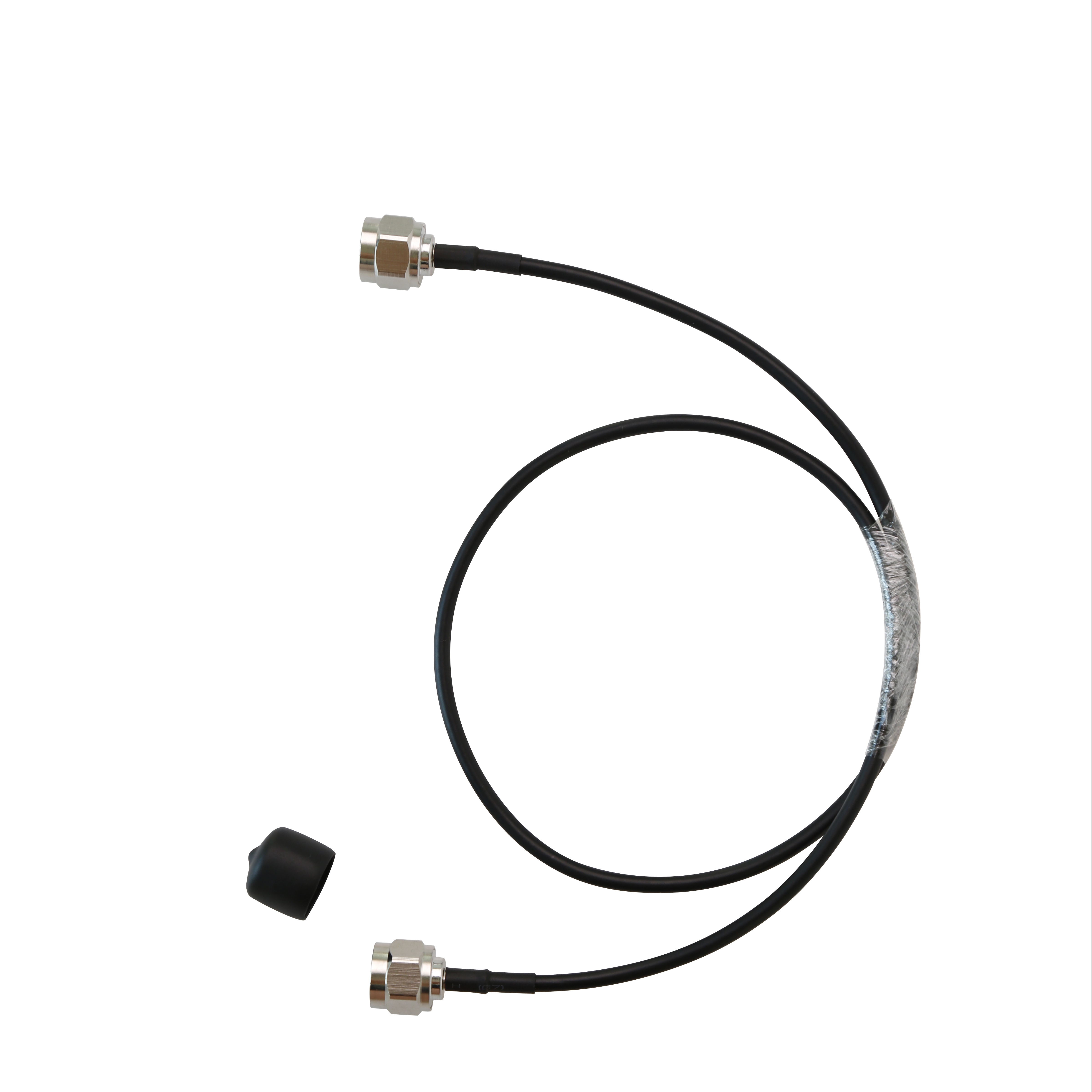

2.LSR-240 coax cable assembly can be used in wireless communications systems

3. Jacket:  PE jacket is UV resistant for outer door use and PVC jacket for indoor use,  LSZH jacket is environment friendly, it is for your choice

Best Feature:

 1. LSR 240/ LMR 240 cable features a flexible outer conductor, allowing the tightest bend radius of any cable of similar size and performance.

2.Low Loss: Lowest loss of any flexible cable; comparable loss to semirigid  cables

3.Spot light of the Aluminum foil between the insulation and braiding. It is material of PET, the Aluminum-PET composite tape is widely used in coaxial cable industry, the color of PET is usually blue or white(color is optional, no special function), the tape is self-adhesive, since the tape is with glue.AL/PET Tape (Aluminum Mylar Tape) is used for cable shielding as a shielding insulator when assembling electronic components. AL/PET Tapes provide more protection by increasing the metallic coverage without adding increased thickness to the diameter of the cable. It comes in 3 different colors: Dark Blue, Light Blue, and Silver.
