Description

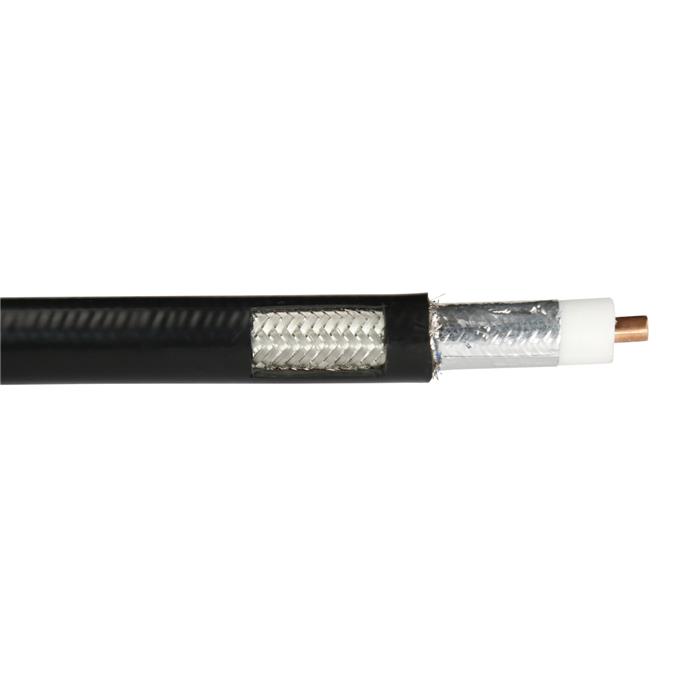

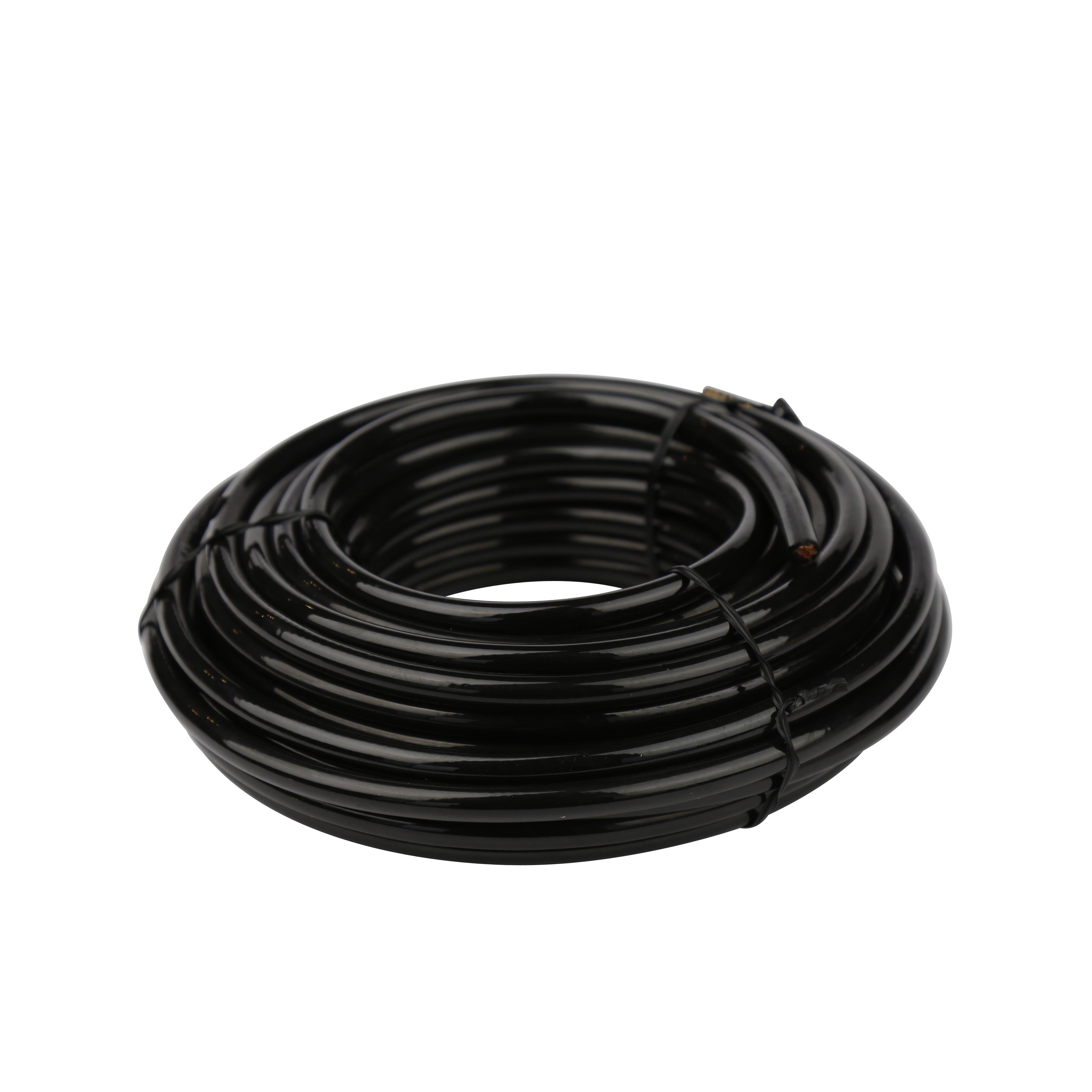

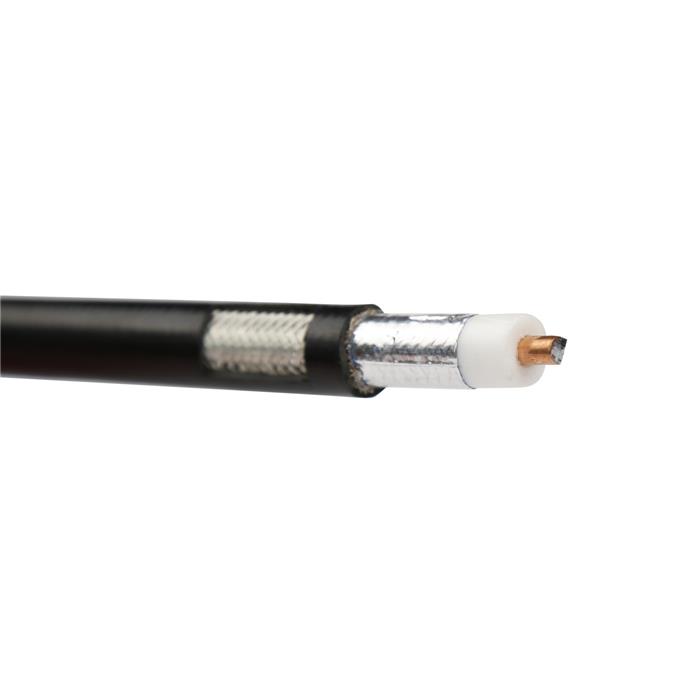

LMR100 LMR200 LMR300 LMR400 PE insulated RF coaxial cable
Product Description
. Conductor:CCS,Cu
. Insulation Material: Foam PE
. 1st Shielding: Aluminum Tape
.2nd Shielding: Tinned Copper Braiding
Impedance:50Ω±2
. Color: Black
2)Typical Application:
LSR100A(LMR100A) low loss coax cable is widely used for any application such as WLL, GPS, LMR, WLAN, WISP, SCADA, Mobile Antennas. LMR100A can replace RG174 RG316,
3)Best Feature:
1. LSR 100/ LMR 100 cable features a flexible outer conductor, the bending radius is better than any cable of similar size.
2.Low Loss: Lowest loss of any flexible cable; comparable loss to semi-rigid cables
3.Spot light of the Aluminum foil between the insulation and braiding. It is material of PET, the Aluminum-PET composite tape is widely used in coaxial cable industry, the color of PET is usually blue or white(color is optional, no special function), the tape is self-adhesive, since the tape is with glue.AL/PET Tape (Aluminum Mylar Tape) is used for cable shielding as a shielding insulator when assembling electronic components. AL/PET Tapes provide more protection by increasing the metallic coverage without adding increased thickness to the diameter of the cable. It comes in 3 different colors: Dark Blue, Light Blue, and Silver
