Description

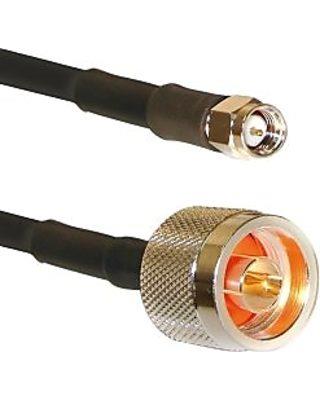

Coaxial cable lmr200 lmr240 with SMA connector cable assembly
Product Description

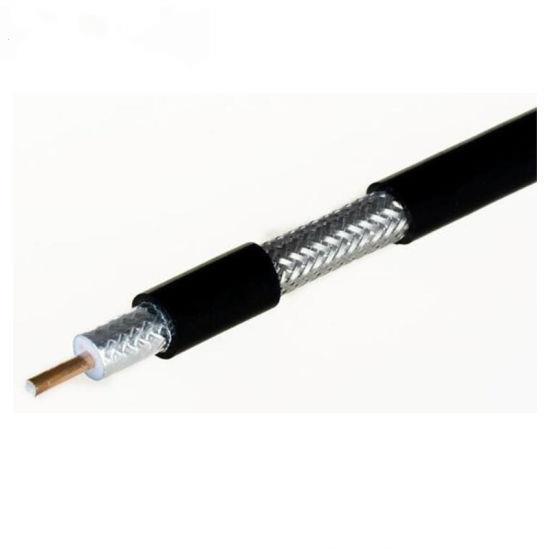

| LSR200/LMR200 low loss coaxial cable specifications | |
| Material of Inner Conductor | BC (Bare Copper) |
| Structure of Inner Conductor | 1/1.12mm |
| Material of Insulation | FPE(Foam PE) |
| Diameter of Insulation | 2.95mm |
| 1st Shielding | Aluminum Tape |
| Material of Braiding(2nd Shielding) | TC (Tinned Copper) |
| Structure of Braiding(2nd Shielding) | 112*0.12mm |
| Material of Jacket | PE, PVC, LSZH |
| Diameter of Jacket | 4.95mm |
| Working temp | -40℃/80℃ |
| Impedance | 50Ω±2 |
| Voltage | 1000V |
| SWR(0-2500MHz) | ≤1.2 |
| Min.Bending Radius | 12.7mm |
| LSR240 low loss coaxial cable specifications | |
| Material of Inner Conductor | BC (Bare Copper) |
| Structure of Inner Conductor | 1/1.42mm |
| Material of Insulation | FPE(Foam PE) |
| Diameter of Insulation | 3.81mm |
| 1st Shielding | Aluminum Tape |
| Material of Braiding(2nd Shielding) | TC (Tinned Copper) |
| Structure of Braiding(2nd Shielding) | 112*0.12mm |
| Material of Jacket | PE, PVC, LSZH |
| Diameter of Jacket | 6.10mm |
| Working temp | -40℃/80℃ |
| Impedance | 50Ω±2 |
| Voltage | 1500V |
| SWR(0-2500MHz) | ≤1.2 |
1.LSR200 is designed according to LMR200 coax cable, may be used for any application (ex. WLL, GPS, LMR, WLAN, WISP, SCADA, Mobile Antennas
2.LSR-200 coax cable assembly can be used in wireless communications systems
3. LSR200 has PE jacket for outer door UV resistant and PVC jacket for indoor use, as well as LSZH jacket for your choice
